Medium Research Fuel Cell Assembly Fixture Test Hardware

Medium Format Research Cell

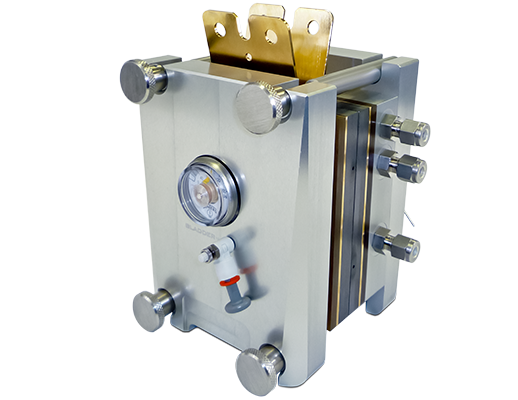

This is a quick assembly fixture for testing medium format (25cm2 or 50cm2) MEAs. It is ideally suited for sample screening, research and development, or educational purposes.


  • Materials that have proven compatibility with fuel cells (Ultem, Niobium, fuel cell grade graphite plates, stainless steel and silicone)
  • The sealing gaskets are simple and reliable, to accommodate your MEAs
  • No tools required for assembly/disassembly
  • Integrated pneumatic bladder to maintain accurate cell compression (requires compressed air or N2 source; either from your lab or your test station)
  • Ports provided into each manifold (can be used for either temperature or pressure monitoring)
  • Can be configured as a single cell or stack (up to 20 cells)
  • MEAs are optional
