Cell Voltage Monitoring System

Solutions for Cell Voltage Monitoring and Measurement
High common mode voltage, high accuracy, and high impedance CVM.

Features, Options and Specifications

  • Common Mode Voltage: up to 1000VDC (800+ channels for fuel cells, 200+ channels for Li-ion batteries)
  • Compatible with all flow battery and electrolyser voltage ranges
  • Available Input Voltage Ranges: ±100mV, ±5V, ±10V, ±75V, ±150V, ±300V per cell
  • Input Impedance: 1MΩ per channel
  • Channel Accuracy: <+/-1mV (using 16 bit conversion)
  • Communication: Ethernet / CAN Bus
  • Windows-based driver available for custom integration
  • LabVIEW VIs available for integration into NI-LabVIEW based software
  • Ambient temperature compensation on each channel

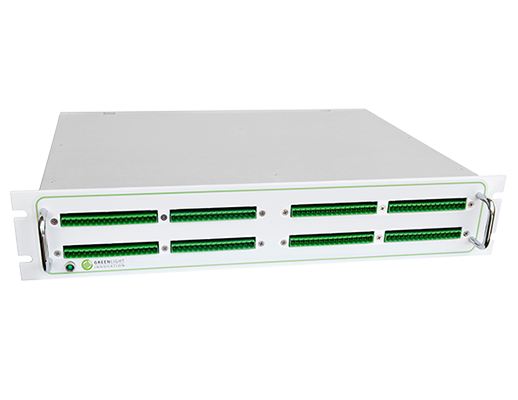

The CVM unit is available as a stand-alone system, or fully integrated into Greenlight's testing equipment.  Custom configurations and enclosures are also available.  Protected under U.S. patent number: 9,127,987 B2.

For more information, or to request a quote please contact our sales team: sales@greenlightinnovation.com
