Data Acquisition System

Solutions for Data Acquisition Monitoring and Measurement
Fully Configurable Analog Data Acquisition

Features, Options and Specifications

  • Each module contains 32 available slots for various analog input channels, each equipped with a 16-bit A/D converter
  • Modules can be configured in a daisy-chain (up to 32 channels), differential mode (up to 16 channels), or mixed configuration
  • Each slot supports numerous analog input types, including: ±100mV, ±5V, ±10V, ±75V, ±150V, ±300V, 0-20mA, Thermocouple (K, J, S, T types)
  • Max channel-to-channel common mode voltage isolation: 1,000VDC
  • Channel input impedance (voltage channels) : ≥1MΩ
  • Channel accuracy: ±1mV with ±5V channel type
  • Each module can be connected in a star Ethernet network configuration for 1,000+ channels
  • Simultaneous data sampling on each board – not multiplexed
  • 1kHz burst sampling mode possible via external trigger input
  • Up to 100Hz continuous data sampling

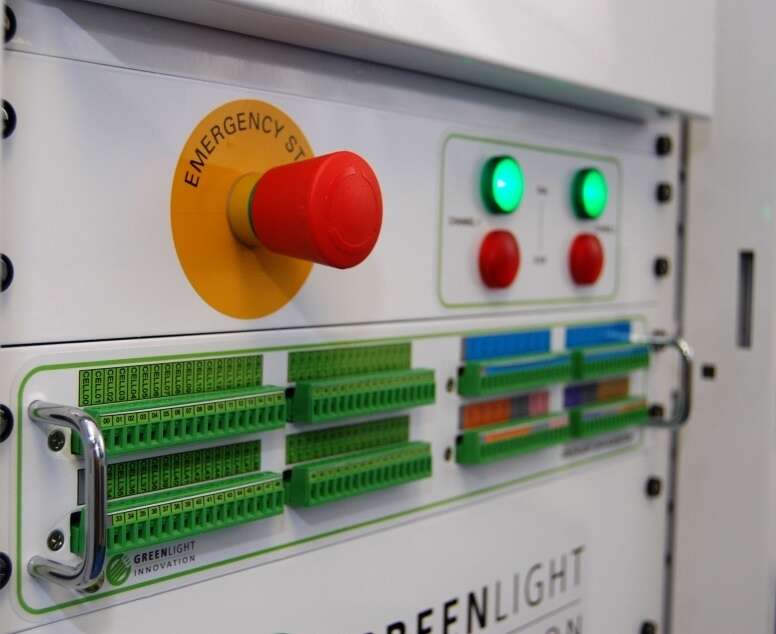

  • Standard 2U 19” rack box, holds up to 4 modules for up to 64 differential, or 128 daisy-chained channels
  • Custom form factors and custom enclosures are available
  • Communication interface: 10/100 Mbps Ethernet (optional CANBus)
  • Thermal drift compensation on each channel maintains accuracy over wide temperature range

Protected under U.S. patent number: 9,127,987 B2.  For more information, or to request a quote please contact our sales team: sales@greenlightinnovation.com
